The number that is never discussed is as follows: OSHA approximates that compliance with lockout/tagout would save approximately 120 deaths and 50,000 injuries each year just in the US alone. It is not a forecast or best case scenario. The actual difference between plants who take energy control seriously and those who do not.
At the very middle of that gap and lockout stations.
They’re not glamorous. The idea of a bright yellow board on a machine with a few padlocks and tags dangling off it is no one-shout to innovation. However, once you consider the reasons why incidents occur, and more crucially, why incidents continue to occur despite the facilities having LOTO programs on paper the lockout stations become a more interesting discussion.
This article would be of interest to anyone involved in or close to industry, in facilities management, EHS, or maintenance activities. It includes what the state of the technology is today, which issues are still not solved by the existing system, and what direction the world is moving towards as smarter integrations begin to come into view.
Table of Contents
The Real Problem Isn’t Missing Rules – It’s Missing Hardware at the Wrong Moment
The majority of the facilities which had a LOTO-related incident already had a written procedure. The failure nearly never occurs in the policy level. It occurs at the instance one of the technicians approaches to repair a piece of equipment and a technician walks to access it and pick a hasp or a particular lockout tool, only to discover that it is missing.
perhaps some one borrowed it and failed to give it back. The station could be at the other side of the building. Perhaps there exist three various stations in the department and nobody is even certain which station has the correct valve lockout.
So they improvise. And that jazzing about even when it means well it is in that that people are hurt.
This is the main point why it is necessary to apply lockout stations: not to introduce excessive bureaucracy, but eliminate friction that leads to shortcuts. When the right tool is always at the right location, the least amount of resistance is to do the job right.
Missing or borrowed items are easily noticed by their shadow-board design (outlined places where each item is located). It is a simple soundbite that is a misleading fix to a real functioning problem.
What Most People Get Wrong About Station Placement
When installing lockout stations, much of the attention is put on the hardware. The type of padlock to be used, the type of hasp, the amount of danger tags the type of padlock, all that is subjected to intense examination. And the station is then mounted in a corner which, technically, is close to the equipment zone, but which in practice is inconvenient.
Placement is where most of the programs silently fail.
The consistent finding of safety audits is that ill location of the station, rather than ill choice of hardware, is the leading factor behind inconsistent use. When a technician is forced to go around the equipment to access the station, or conditions the station is half-blocked by a cart that is always parked in that position, usage declines very rapidly.
In the documented cases reviews I have been able to find that the facilities with the highest rates of LOTO compliance have one thing in common; stations placed in such a way that a worker passes it on the way to the asset and not after reaching the asset. It is a little detail that makes a difference at large.
Some placement principles which stand the test of time:
- Station should be visible and accessible without moving anything out of the way
- It should be located between the point where the worker enters and the equipment and not next to the equipment.
- Large departments have several smaller stations that do better than a large central station.
- Multilingual signage is significant than most EHS staff imagine, particularly where mixed-language workforce is involved.
The moral of the story: when testing an existing LOTO program, test the placement, not the hardware. Take a stroll along the route that a technician really takes and determine whether the station is in the streamline or not.
A Closer Look at How Lockout Stations Are Actually Structured
To anyone new to this area it assists to realize what a good station really holds – not as a checklist but as a working system.

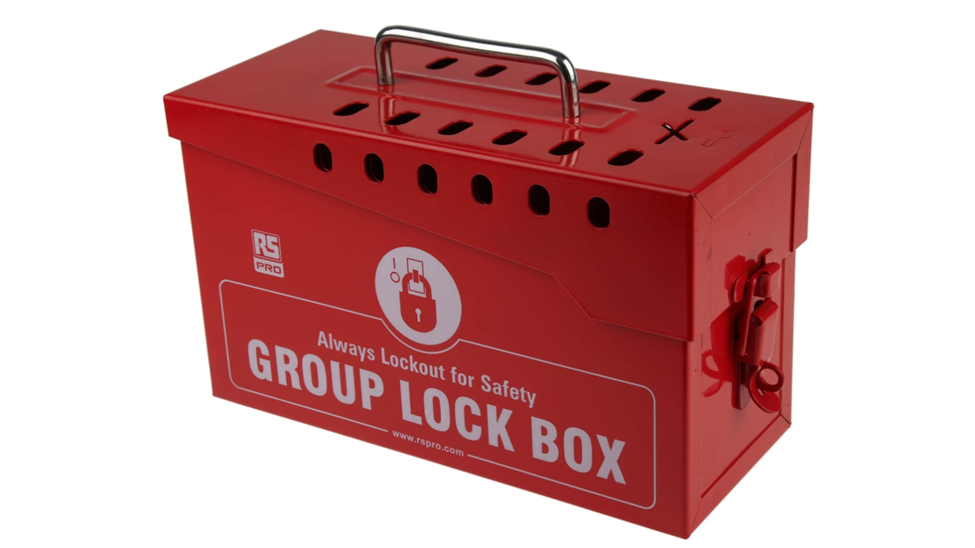

The actual physical station is often a high visibility panel or cabinet mounted on the wall, which is colored in red or yellow. You will find in or on it:
- Padlocks – single keyed (keyed-different) – and frequently color-coded by department or shift.
- Lockout hasps – enables several workers to use their own padlock to a single isolation point when performing group lockouts.
- Specific lockouts on a device – breaker lockouts, valve lockouts, plug covers, cable lockouts keyed to the actual equipment on that circuit.
- Danger tags – printed, and fields of name, date, reason, and contact added.
- Pockets of documentation – procedure cards, one-line diagrams or audit checklists.
Newer station designs have shifted to UV stable plastics and harsh environmental resistant materials that can withstand the harsh environments as well as using transparent protective covers that allow the devices to be seen but not to be exposed to dust or moisture.
An interesting current design movement: the stations are beginning to be considered as access points to procedures, rather than as hardware storage. Certain facilities provide equipment-specific LOTO procedure cards, which are placed on the station kept in the equipment zone.
The lock is handed over to them, and the step-by-step in a single stride when a tech is walking up.
It is a significant upgrade to the older model where procedures were stored in a binder somewhere in the supervisor office.
Why to Implement Lockout Stations From a Compliance Angle (Without Overcomplicating It)
LOTO violations are yearly found on the list of the ten most frequently cited OSHA standards. This is not just mere coincidence but a commentary of the extent of the applicability of the regulation on the one hand, and the ease of practice failure on the other.
The regulation (29 CFR 1910.147) imposes on the employers a duty to supply proper energy isolating gadgets and to make them accessible to workers. One of the most evident methods to record that you have done so is through lockout stations. As an inspector or auditor tours your center, the first thing you see as he or she strides through your facility is a clean station with labeled hooks and shadow boards sending a message: this is not some messy program but one that is run well.
Also an insurance aspect that no one speaks much of. Strong and well-documented LOTO program with maintained stations as a physical reference point is excluded by insurers who specialize in industrial risk as a signifier of the generally developed safety culture. That perception affects both the focus on enforcement during inspections and premiums.
It is not how having a lockout station will get you a lower rate by itself. The reason is that it is among the visual clues proving that you are operating a disciplined operation. And in risk assessment, evidence is noticeable.
The Efficiency Argument – This One Surprises People
The widely spread belief is that a comprehensive lockout procedure is time consuming. It is so, strictly speaking adding locks increases the amount of steps. The efficiency math however on a complete maintenance cycle is a different story.
I have compared the data of facilities that were previously monitoring technician time and found out the trend the same way: after consolidation to organized lockout stations, the search time can be reduced by a factor of three. As the technician is able to literally walk to a station and take what it is that specifically they are required to have and begin the isolation process without browsing the entire plant trying to find some particular valve lockout or hasp, the preparation phase becomes less in length – as little as 10-20 minutes a job.
Add that up to a maintenance crew working on several PMs per day, and you have a number to consider.
Group lockouts (using padlocks used by several workers on the same hasp), are also simpler to organize when a distinct station has sufficient numbers of hasps and that there is a central group lock box. Without such infrastructure, group lockouts are frequently bypassed to one individual locking out the entire crew, which is not only a compliance issue, but also a safety issue.
The con side of the equation: unplanned downtime. Once an incident happens, the cost does not only include the injury (but of course this is the major issue). It’s the investigation, the OSHA reporting, the time wastage during the investigation, the retraining, and the insurance effect. Lockout stations do not prevent all the risk, but decrease the circumstances which trigger the incidence of such events.
Where Lockout Station Technology Is Heading
This is what lacks in conventional safety content.
The majority of the stations nowadays remain strictly analog – physical boards with physical devices. That works. However, an increasing number of amenities are beginning to overlay digital aspects on that base.
Already in more progressive programs, QR codes on station panels appear. A technician uses a code read in the area surrounding the equipment and receives the specific LOTO procedure to be used in that machine on their cell phone or tablet – not a generic procedure but the equipment-specific isolation steps and in the correct sequence and at the correct isolation locations. No binder required.
The next level is CMMS integration. Certain EHS and maintenance software platforms have areas that are linked to a work order and a specific lockout process and lockout station. Making a work order on their tablet, a tech can access the type of station to resort to and the types of devices to retrieve and document the lockout in a job record. That provides an auditable record without paperwork.
RFID padlocks continue to be used in more developed Industry 4.0 setups. By reading the mounted padlocks, readers on the station or near them can tell if the padlocks are in use and to whom they are assigned and what they are currently being used. This is a step towards real-time dashboards of the live lockout status in a single facility.
This type of integration also establishes predictive safety analysis – identifying patterns such as a given machine that has frequent near-misss owing to its lockout not being activated or not handled in a correct manner. That is information-based safety culture, and lockout stations become a physical anchor thereof.
All this is not compulsory. The regulation of OSHA is result-oriented – good control of hazardous energy – or on whether your padlocks contain RFID chips. However, in the case of facilities that have dozens or hundreds of assets and operate on large sites, digital integration produces traceability, which can begin to address significant issues in actual management.
Common Pitfalls That Undo Good Station Programs
Having the hardware correct does not mean that the program will work. It is here that things come unstuck despite a good initial set-up:
Under-scoped device selection. When a station is padlocked and haspadlocked, and yet lacks the particular valve lockout or breaker cover needed by your equipment you must improvise. But improvisation is the issue that you were attempting to resolve. Never base your list of device on a pre-created set of isolation points, but rather on a real inventory of the isolation points.
Neglected maintenance. A workstation that lacks padlocks and a broken hasp and worn tags corrosion worker trust. When the station appears to have no one listening to it, the unspoken opinion is that there is no one listening to LOTO compliance. This is prevented by monthly checks, or even quick checks during 5S walks.
Diversity in interdepartmental or inter-store variation. Varied colour schemes, varied keying schemes, varied forms of tag used in various departments generates confusion during cross-training and auditing. Standardization is not a matter of aesthetics- it would ease cognitively the workers who would be able to service several areas.
The real damage being done by production pressure. This all has an underpinning cultural challenge of the implicit reward structure in most facilities. Shortcuts are informally accepted when production pressure is high. Lockout stations are useful here as they lessen time penalty of performing it correctly – which eliminates one of the primary reasons in not following steps.
Nevertheless, they do not substitute purposes of clear leadership communications and near-miss reporting that takes the subject of LOTO shortcuts seriously.
Getting Started – A Realistic Rollout Without Overcomplicating It
When you consider whether you should use lockout stations within your facility or give your customer some advice, the truth of the matter is: start small and get it right before you go big.
- Locate the equipment within your target area and catalogue all of the isolation points- electrical disconnects, air lines, hydraulic connections, valves.
- You must have equipment-specific processes written out in front of you purchase a piece of hardware.
- Use the real isolation hardware to choose the devices, rather than a kit.
- Select your type of station and station placement depending on the workflow (where workers enter into the zone but not where it has wall space).
- Use a color, keying and tags standard to ensure uniformity at the beginning.
- Train certified staff about procedures and use of the station including group lockout.
- Audit is required at least quarterly during year one and annually once the program has stabilised.
Prefer to keep the station exclusive to LOTO no general tools, no PPE there. Once a station begins picking up irrelevant items it is an indicator that the program is not being used as a serious safety mechanism.
Should you be constructing training content, or a digital workflow, around this, it is worth considering the ways automation would fit into your larger operational systems.
Simultaneously as facilities learn how to integrate LOTO workflows with CMMS-like platforms, other operational teams are discovering potential in practices such as How to Automate Email Workflows to cut down on manual overhead with safety communications and inspection reporting – the principle of eliminating friction in the processes demanded is universal.
Equally, with the spread of tablet-based LOTO systems in facilities, the peripheral specifications also become important – factors such as ensuring you are aware of how the power management is handled on the devices your teams are carrying, such as simple items like How to Charge Apple Pencil when your teams are going into the field with iPads in their hands.
Honest Take: Who Actually Needs to Read This
And when you already have an established LOTO program with sustained stations, audits and trained staff, then this is likely not much new information you not only knew about, but you also might get some additional helpful context around the digital path things are taking.
In a facility where LOTO is on paper and the stations are out-of-date, poorly situated, or even half empty, then that is who the real audience here is. The difference between having a program and a functioning program is not normally regarding instruction or regulations. It concerns whether, the physical infrastructure can make compliance easier compared to non-compliance.
Lockout stations properly deployed, do just that. They do not glow like silver and culture or leadership is not substituted with them. But they are eliminating the circumstances in which shortcuts seem to be necessary – and that is where the majority of the avoidable incidences get their start.
